Klaviyo

info

The Klaviyo integration allows Karla to provide your Klaviyo account with triggers of any sort, like shipment notifications or claims.

Steps​

1. Open Klaviyo & navigate to Settings​

Klaviyo Installation 1

2. Select API key and click on Create Private API Key​

Klaviyo Installation 2

3. Name it “Karla Integration” and select the scope and confirm with Create​

You should select the following scopes (Read/Write Access):

  • Events: to allow Karla to send events to your Klaviyo account
  • Profiles: to allow Karla to access profile data
  • List: to allow Karla to read Klaviyo lists to enable segmented campaigns
  • Segments: to allow Karla to read Klaviyo segments to enable segmented campaigns

Klaviyo Installation 3

4. Copy the Private API key and send it to Karla​

Klaviyo Installation 4

Building Klaviyo Flows​

To cover the most important delivery journey events, we recommend first of all creating the flows for following events:

  1. shipment_in_transit
  2. shipment_carrier_delay
  3. shipment_damaged
  4. shipment_out_for_delivery
  5. shipment_delivered
  6. shipment_delivered_to_neighbour
  7. shipment_delivered_to_letterbox
  8. shipment_delivered_to_parcelshop
  9. shipment_not_picked_up_returned
  10. shipment_failed_returned

By creating these 10 flows you will be able to cover standard events happening for every order (shipment_in_transit, shipment_out_for_delivery ), all delivered cases (shipment_delivered, shipment_delivered_to_neighbour, shipment_delivered_to_letterbox, shipment_delivered_to_parcelshop) and the events that hopefully do not happen too often, but where it is most important to be proactive with your customers (shipment_carrier_delay, shipment_damaged, shipment_not_picked_up_returned, shipment_failed_returned ).

Karla provides other shipment events beyond these 10. See Event Groups for more information.

Pickup Reminder Flow​

Inserting the tracking page link​

To include the tracking page link in your Klaviyo emails you should use a dynamic link with order_number and zip_code variables, so that your customers always receive their personalised link:

For emails triggered through Klaviyo:

Karla events​

Karla hosted tracking page
https://app.gokarla.io/track/slug?orderNumber={{ event.order_number|default:'' }}&zipCode={{ event.zip_code|default:'' }}&ref=karla
Embedded tracking page
https://yourshop.com/pages/tracking?orderNumber={{ event.order_number|default:'' }}&zipCode={{ event.zip_code|default:'' }}&ref=karla

Shipping Confirmation​

Triggered by Shopify's Fulfilled_Order Event.

Karla hosted tracking page
https://app.gokarla.io/track/slug?orderNumber={{ event.extra.order_number|default:‘’ }}&zipCode={{ event.extra.shipping_address.zip|default:‘’ }}&ref=karla
Embedded tracking page
https://yourshop.com/pages/tracking?orderNumber={{ event.order_number|default:'' }}&zipCode={{ event.zip_code|default:'' }}&ref=karla
tip

A slug is your unique identifier that represents your shop within the Karla system. This is used to properly route tracking information and ensure that shipment data is associated with the correct merchant account.

Testing the flows​

Once you’ve set up the flows and the respective emails it is important you make sure that the integration is working as expected.

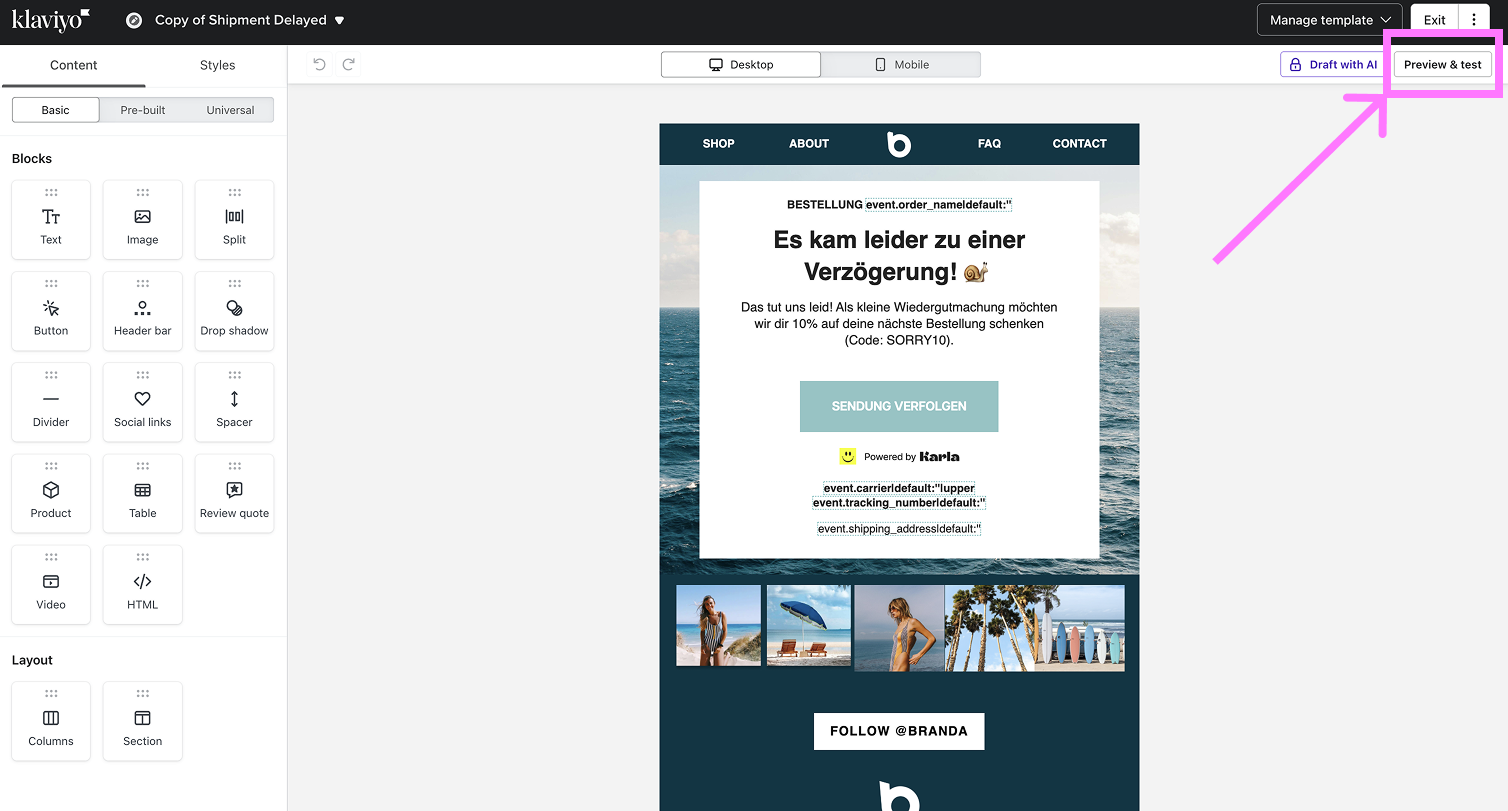

In the Email Template Editor go to Preview & Test

Klaviyo Test 1

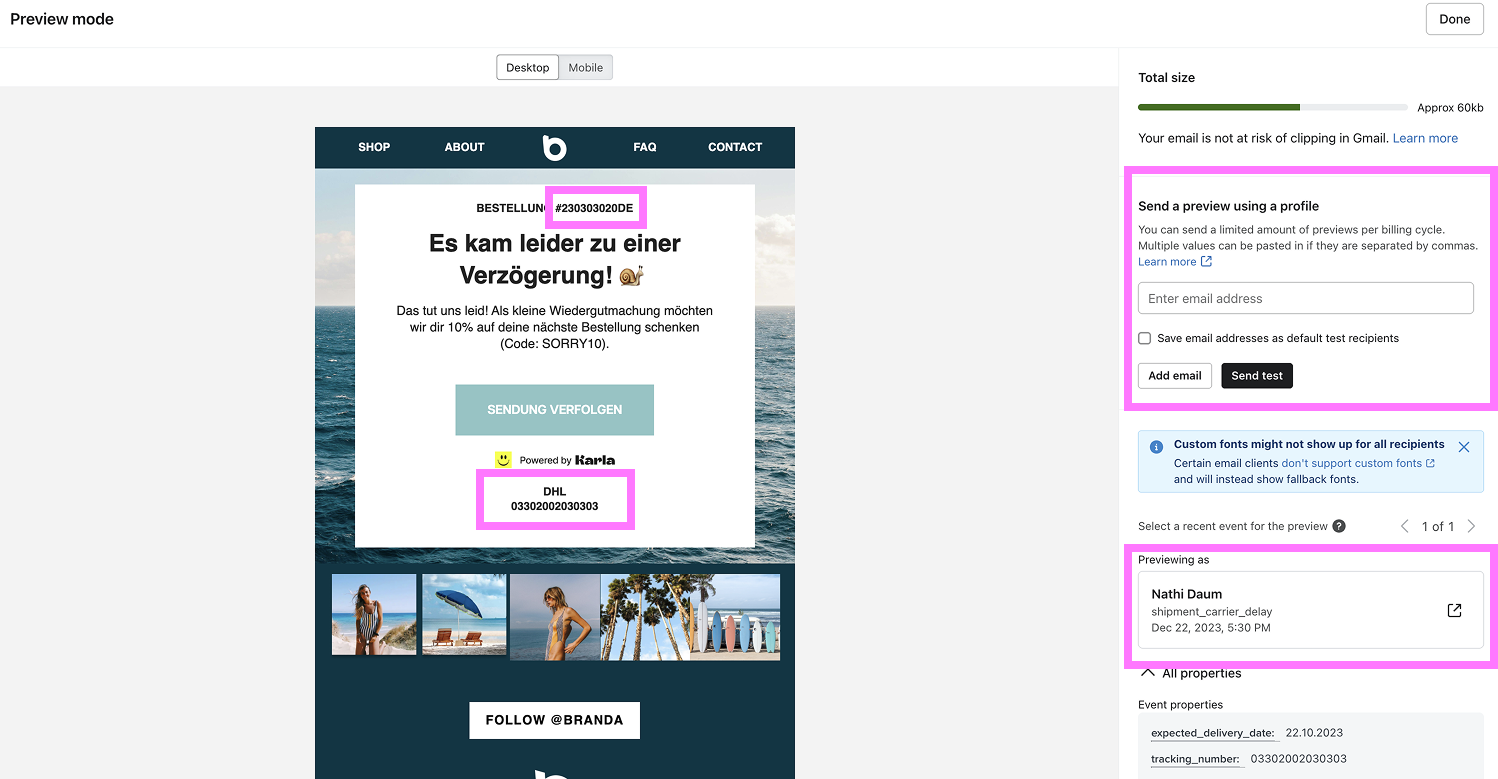

There make sure that in the profiles you see the information from the profiles from your shop and not from Karla’s test events. These should be infos like customer name, order number, shipping address etc.

warning

You will see this information only after you have integrated your Shopify/Shopware Shop and Klaviyo with Karla. More on shop integrations

Klaviyo Test 2

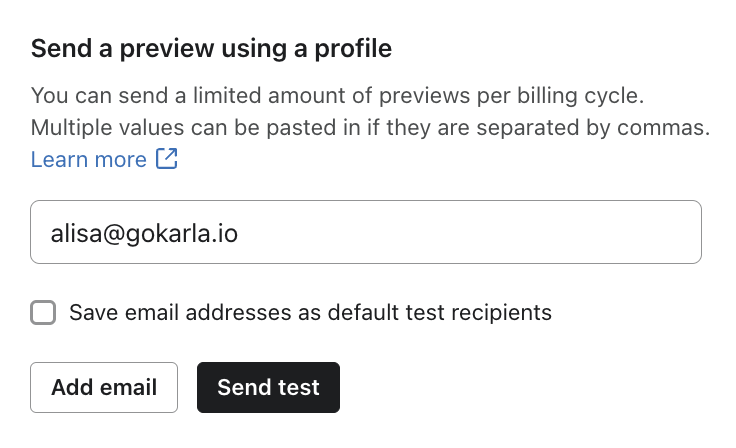

If you want to see how your customers will receive the emails, you can send a test email to your email-address.

Klaviyo Test 3

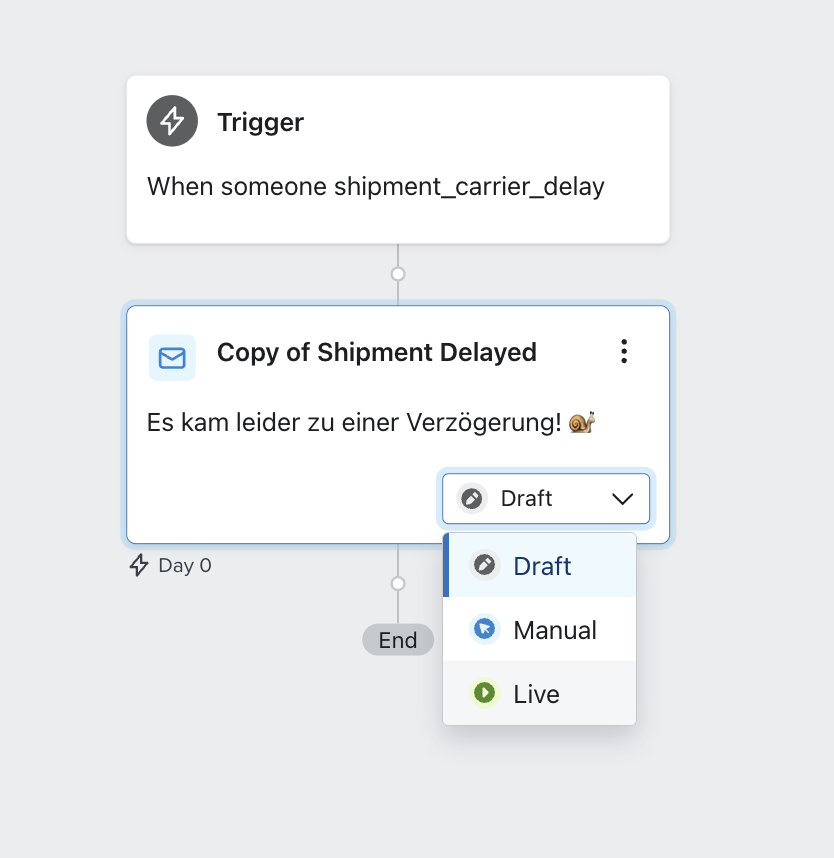

Putting the flows live​

After you have tested your flows, you can put them live upon the agreed go-live date.

warning

Make sure you have requested the transactional status for your Karla flows (more on the transactional status here) and have disabled the Smart Sending feature, so that all of your customers receive there shipping updates.

Klaviyo Live Flows

Event Groups​

Karla provides the following event groups to your Klaviyo instance in relation to your customer orders.

Claims​

For any processed claim (e.g. damaged package, package not found...). See Claims.

  • claim_created
  • claim_updated

Shipments​

For any processed shipment update.

  • shipment_carrier_delay
  • shipment_damaged
  • shipment_delayed_due_to_customer_request
  • shipment_delivered
  • shipment_delivered_all_events
  • shipment_delivered_to_letterbox
  • shipment_delivered_to_neighbour
  • shipment_delivered_to_parcel_locker
  • shipment_delivered_to_parcel_shop
  • shipment_delivery_failed
  • shipment_delivery_failed_address_issue
  • shipment_delivery_failed_forwarded_to_parcel_shop
  • shipment_delivery_second_attempt
  • shipment_failed_returned
  • shipment_pre_transit
  • shipment_in_transit
  • shipment_not_picked_up_then_returned
  • shipment_out_for_delivery
  • shipment_picked_up
  • shipment_refused_then_returned
